THE GENPRO ENERGY SERIES

GenPro XS 720 and XSS 1440 Water Systems

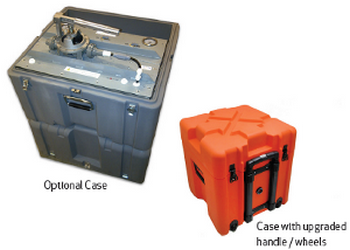

The GP XS 720 uses a manual hand pump and is engineered to provide microbiologically safe drinking water from any type of fresh water source (stream, lake, pond, well and/or cistern).  Independent lab testing has verified the system for bacteria reduction based on EPA Clean Drinking Water standards.  The GP XS 720 is a completely portable (easily transported by two people) eight-stage water treatment system for use in remote locations.

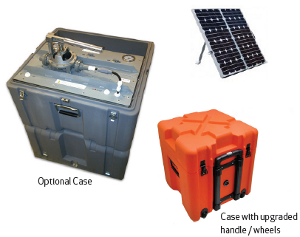

The GP XSS 1440 does all the above via a solar-powered system with backup manual hand pump.

MODEL GP XS 720 WATER SYSTEM*	MODEL GP XSS 1440 WATER SYSTEM*
FEATURES AND SPECIFICATIONS
Output: 720 GPD, 2725 LPD (based on feed water at 72°F) Hollow fiber ultrafiltration membrane removes 99.999% of bacteria, cysts and viruses Pre-filter: Back-flushable sediment filter Post-filter: 0.5 micron carbon External product/drain quick connect fittings External standard hose-fitting feed connection 1st pressure gauge monitors incoming feed water pressure 2nd pressure gauge is after the final filter to monitor pressure drop across the system Membrane quick release vessel 12 feet of suction hose (supplied) Easy-to-operate hand power water pump with a 12.5 foot water draw capability (25 foot with solar option), delivering 1gpm at 10 psi into system for maximum water production Manual product, feed drain, tank flush valves Stainless steel dispensing spout Dimensions -- 65.2cm x 64.7cm x 61.6cm; dry weight 32.2 kg, wet 38.5 kg Easily disinfected at the end of each day (disinfection kit included)	Output:  1440 GPD, 5450 LPD (based on feed water at 72°F) Hollow fiber ultrafiltration membrane removes 99.999% of bacteria, cysts and viruses Pre-filter: Back-flushable sediment filter Post-filter: 0.5 micron carbon External product/drain quick connect fittings External standard hose-fitting feed connection 1st pressure gauge monitors incoming feed water pressure 2nd pressure gauge is after the final filter to monitor pressure drop across the system Membrane quick release vessel 12 feet of suction hose (supplied) Easy-to-operate hand power water pump with a 12.5 foot water draw capability (25 foot with solar option), delivering 1gpm at 10 psi into system for maximum water production Manual product, feed drain, tank flush valves Stainless steel dispensing spout Dimensions -- 65.2cm x 64.7cm x 61.6cm; dry weight 128 kg, wet 58 kg Easily disinfected at the end of each day (disinfection kit included) 24-volt DC electric pump and motor mounting bracket/(4) 20 watt solar panels Additional hollow fiber membrane to increase production to 5,488 LPD (pump required)

**********

GenPro XM 2500 and XP 10000 Ultrafiltration Systems

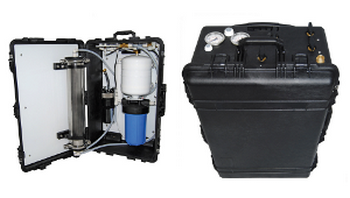

Designed for field use under emergency conditions, the GP XM 2500 uses electrical input from an external, solar-powered DC power source. An external, submersible pump is used to draw water from a variety of feed sources.  All system components are built into a rolling case.  This system is light enough to be moved/deployed by one person.

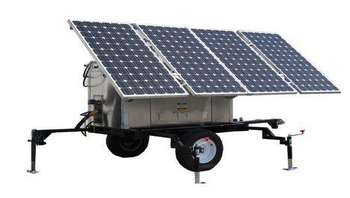

The GP XP 10000 design incorporates the best of ultra-water-filtration treatment and solar power technologies.  When there is a loss of electrical grid power or no power available, this system can employ solar technology to charge the battery bank with a normal solar day time frame based on location.  This, then, powers the water treatment system up to 24 hours autonomy at full water production.


MODEL GP XM 2500
ULTRA-FILTRATION SYSTEM*

MODEL GP XP 10000
ULTRA-FILTRATION MOBILE SYSTEM*

• Output: 2500 GPD, 9464 LPD (based on feed water at 22°C)
• Hollow fiber ultrafiltration membrane removes 99.999% of bacteria, cysts, and viruses
• Pre-filter: High efficiency, gradient depth filter
• Post-filter: 25.4cm granular activated carbon
• External standard hose-fitting feed connection
• Pre-filter in/out pressure gauges
• Manual product, feed, drain, tank flush valves
• Stainless steel membrane housing
• Rugged Pelican 1650 case is unbreakable, watertight, airtight, dustproof, chemical-resistant, and corrosion-proof
• 9300 Shurflo pump
• Dimensions -- 82.5cm x 52cm x 28.7cm; weight 34 kg


• Output: 10,000 GPD, 37,500 LPD (solar day of 5-6 hours)
• Heavy duty powder coated steel frame and panels
• Quick connections, both water and electrical
• Enclosed water treatment system department
• Enclosed battery and power control department
• Submersible DC water pump (75 ft. draw)
• Pump controller
• Pressure drop auto kill switch prevents running dry
• Panel mounted flow meters
• Panel mount pre- and post-pressure gauges
• Chlorine injection system
• Manual back washable bed depth filter to protect membrane
• 20" spun depth sediment filter
• 4" x 40 hollow fiber membrane
• Programmable (timed) UF back flush controller
• High flow 1 micron carbon block post filtration to reduce odor and taste
• Retractable/adjustable 4 solar racking panels
• 4 pre-wired solar panels total (maximum wattage 760)
• Case dimensions --  1.2 m x 1.8 m x 1.5 m; weight 1179 kg


**********
GenPro Seawater Systems

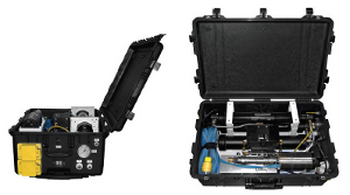

The rugged GP SW 500 system efficiently purifies water and delivers it to an atmospheric tank, where water can then be drawn via a delivery pump.  This system operates on an external AC generator or  via a solar-powered DC source (not included).  An on/off float switch in the tank activates the system.  All system components are built into a rolling case and is light enough to be moved and deployed by one person.

The 1500 SW system does all the above but is powered completely by solar power, with the option to use a generator or AC power.  A programmable, automated, on-board system control provides feed tank low, pre-treat cycle, low-feed pressure,  product tank level, and flush cycle capabilities.  This system is capable of purifying water virtually anywhere in the world.

MODEL SW 500 PORTABLE SEAWATER DESALINATION SYSTEM*

MODEL 1500 SW SOLAR SEAWATER  SYSTEM*

• Output:  Up to 500 GPD, 1800 LPD
• Two high-pressure reverse osmosis membranes
• Pre-filter: 25.4cm gradient depth
• High-pressure Clarke boost pump
• Lorentz submersible pump
• Plastic transport case -- watertight, crushproof, dustproof, with automatic pressure
• Equalization valve
• Glycerin-filled gauge for feed inlet pressure
• Waterproof power connectors
• Dimensions -- 81cm x 55cm x 35.5cm; weight 50 kg.

• Output:  Up to 1500 GPD, 5500 LPD
• Two high-pressure membrane cartridges
• Pre-filter: 50 cm x 6.35 cm x 50 cm cartridge
• 316 stainless steel high-pressure pump with 3 HP motor
• Flow meters for brine and product flows
• Automatic membrane flush
• Low-pressure protection switch
• Microprocessor system controller
• Glycerin-filled gauges for feed filter in/out and vessel array in/out
• Case dimensions -- 55 cm x 66 cm x 124 cm; weight 81 kg
