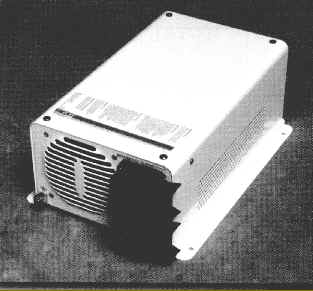

TRACE MODEL UX SERIES
for homes, offices, light industrial, and remote power applications.
|
|
|
|
The
new UX series of inverters is the best choice for systems of 600 to 1400
watts when efficiency, modest power and economical considerations are of
prime importance. |
|
UX SERIES |
600 to
1400 watts of efficient power! This compact inverter will produce
600 to 1400 watts of standard household electrical power and can start and
run appliances up to three times the continuous rating. The UX
series makes the most of battery power available by operating loads at
efficiencies up to 92% and by consuming as little as 1/2 watt under no
load conditions. Load-compensated "smart" protection
circuitry delivers all the energy your battery bank can safely provide,
but shuts down the inverter if your batteries approach dangerous low
discharge levels |
|
|
Options
to fit your installation needs include:
1.) Remote
Control (RC-8/50 or RC-8/100) may be panel mounted 50 or 100 feet (15 or
30 meters) away for convenient indication of inverter's operating status
and ON/OFF control.
2) Stand-By
(SB) includes automatic battery charger and AC transfer switch.
3) Battery
Temperature Sensor (BTS) automatically controls accurate charge. |
Step
Up to Trace Inverters by Xantrex! Other
low cost inverter brands will only sustain a large power requirement for a
moment. The Trace UX series can start and run high power loads of
twice their rated power for nearly a full minute. And with Trace,
you get the most sophisticated protection circuitry in the industry, a
full two year warranty on parts and labor, and the security of knowing you
have the most dependable power inverter in the world.
The Solution: a low cost, reliable and easy to use
inverter/charger
1) 600 to 1400 watts continuous output inverters with a high battery
performance battery charger option available.
2) High efficiency, high surge capacity, low idle current.
3) Low power "search mode: to conserve energy.
4) Quiet operation.
5) Optional three stage charger with temperature compensation (SB models
only).
6) Fast switching for standby power systems (SB models only).
7) Certified to UL standard 1741 for PV Power Systems and CSA-C22.2, No.
107.1M91.
|
|
|
Convenience:
Enjoy using standard home electrical appliances and tools from your
batteries. The UX series converts DC battery power into normal
household AC to run hand tools, microwaves, televisions, computers--almost
any small to medium sized equipment--even small refrigerators which have
high current demands.
Automatic Operation: Plug into utility power or rev-up your
generator, and the UX model inverter starts charging your batteries and
automatically transfers power to your electrical system. It charges
rapidly and completely without overcharging, and maintains a full charge
indefinitely. The high-power design charges batteries in three
stages: bulk, absorption and float. When your AC input power fails,
transfer to inverter power is automatic and typically within 16
milliseconds to keep lights, phone, appliances, and most computers running
without missing a beat (this feature only available with the SB battery
charging option).
Protection: In the inverter mode, the unit automatically
turns off to prevent batteries from running seriously low. The UX
design ensures long battery life and is compatible with both sealed type
or liquid lead acid type batteries. Other protection guards against
over temperature and overload. The crystal controlled voltage and
frequency circuitry also protects your appliances from damage.
Rugged:
Designed for maximum service, all UX models
offer power coated chassis, stainless fasteners, conformal coated circuit
boards and gold plated connectors. AC wiring terminates cleanly
inside the wall or shelf mountable chassis.
The Bottom Line:
The Trace UX series of compact inverters provides quiet, dependable
power whenever and wherever you need it, at a price you can afford . |
|
|
SPECIFICATIONS and
FEATURES, Model UX Series
(European hz range
available--e-mail for info)
Call for availability and freight on these inverters!
NOTE: Below pricing reflects Trace's list
pricing; if you buy your system from us, major system discounts will
apply. Call us for your pricing on Trace components.
Model
Price
With SB (battery charging) Option |
UX612
$595
$695 |
UX1112
$795
$895 |
UX1412
$885
$985 |

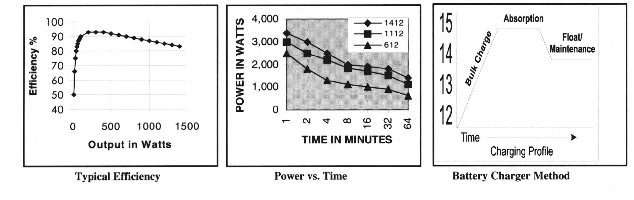

Nominal DC
Input Voltage
AC Output Voltage (RMS)
Nominal Frequency
Continuous Power (@25°C)
Continuous Current (@25°C)
Maximum Current (100 mSec Record)
Maximum Power (light bulb rating)
Efficiency (peak) |
12
VDC
120 VAC
60 HZ
600 VA
5 amps AC
8 amps AC
2500W
92% max |
12 VDC
120 VAC
60 HZ
1100 VA
9 amps AC
22 amps AC
3000W
90% max
|
12 VDC
120 VAC
60 HZ
1400 VA
12 amps AC
30 amps AC
3400W
92% max |
|
DC Input Requirements |
Search Mode
On Mode (no load--idle)
At Full Rated Power
Input Voltage Range
Low Battery Cut-out (w/out SB option)
High Voltage Cut-out |
.022A (.4W)
0.40A (5.0W)
63 amps
10.8 to 15.5 VDC
9.5 VDC
15.7 VDC |
.045A
(.5W)
.45A (5.5W)
120 amps
10.8 to 15.5 VDC
9.5 VDC
15.7 VDC |
.060A (.7W)
.60A (7W)
153 amps
10.8 to 15.5 VDC
9.5 VDC
15.7 VDC |
|
AC Output Characteristics |
AC Output
Waveform
Voltage Regulation
Power Factor Allowed
Frequency Regulation |
Modified Sinewave
+/ - 5% Maximum, +/ - 2.5% Typical
-1 to 1
=/ - 0.01% (crystal regulated) |
|
Environmental Limitations |
Enclosure Type
Specified Temperature Range
Allowed Operating Temp Range
Dimensions - Inverter Only
Dimensions - Shipping
Mounting |
Indoor,
ventilated, steel chassis with powdercoat finish
32°F to 104°F (0°C to +40°C) (output will meet specified
tolerances)
-40°F to 140°F (-40°C to +60°C) (output may not meet specified
tolerances)
10/5" (26.7cm) high, 15.5" (39.4 cm) wide, 6" (15.2cm)
deep (when wall mounted)
20.5" (52cm), 27" (69cm), 15.5" (40cm)
Wall or shelf mount |
Weight,
Inverter Only
Weight, Shipping |
25 lbs (11.4kg)
30 lbs (13.6kg) |
30 lbs (13.6kg)
35 lbs (15.9kg) |
35 lbs (15.9kg)
40 lbs (18.2 kg) |
|
Stand-By (SB) option |
Automatic AC
Transfer Relay
Maximum Battery Charging Rate |
30 amps AC
25 amps DC |
30 amps AC
50 amps DC |
30 amps AC
50 amps DC |
3-Stage Charger
Regulation Method
Selectable Low Battery Cutout |
Bulk
(constant current), Absorption (constant voltage) and Float
(maintenance voltage)
9.5VDC (allows deep discharge) or 11.8VDC (for use with starting or
shallow cycle batteries) |
|
Additional
options |
Battery
Temperature Sensor
Remote Control Panel |
BTS/15:
15 foot plug-in battery temp sensor with phone jack
RC/8-50: 50 ft. ON/OFF remote with LED status indicator
RC/8-100: 100 ft. ON/OFF remote with LED status indicator . |
|
 |
|
|
|
|
|
